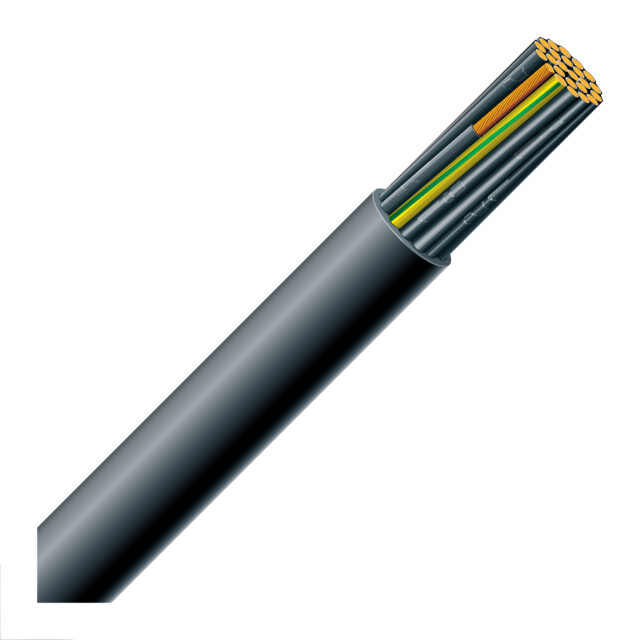

YSLY 600/1000 PVC FLEXIBLE CONTROL CABLE
Order Plain annealed flexible copper conductors to IEC 60228, PVC insulated, PVC outer sheath. 600/1000 volts. Flame propagation to EN 50265-2-1, IEC 60332-1-2.
SPECIFICATIONS
| Temperature limits | -5 °C to +70 °C |
| Max. temperature of a conductor | +70 °C |
| Short-circuit temperature | +150 °C |
| Bending radius | 7,5 x overall diameter |
Colors available: Black.
Core Identification:
- YSLY-JZ 600/1000: one core – Green/Yellow, all other cores Black with continuous numbering;
- YSLY-OZ 600/1000: all cores are Black with continuous numbering;
- YSLY-JB 600/1000: colored cores with Green/Yellow conductor;
- YSLY-OB 600/1000: all colored cores.
