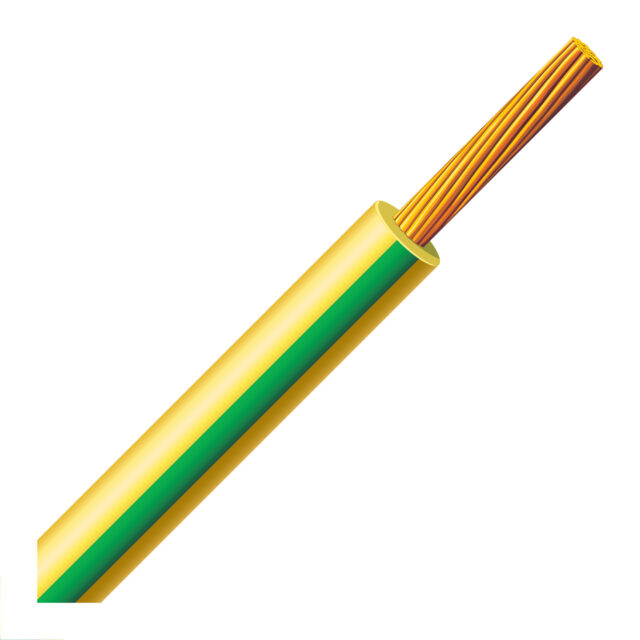

H07V-R (6491X) PVC
Order Stranded plain annealed compacted circular copper conductor, PVC outer sheath. Manufactured to EN 50525-2-31, BS 6004:2012. 450/750 volts grade to BS EN 50525-2-3. Flame propagation to BS EN 50265-2-1, IEC 60332-1-2.
SPECIFICATIONS
| Temperature limits | -15 °C to +50 °C |
| Max. temperature of a conductor | +70 °C |
| Short-circuit temperature | +150 °C |
| Bending radius | 5 x overall diameter |
Standard colors available: Green/Yellow, Blue, Red, Brown, Black, Green, Yellow, Violet.
Other colors are available according to customer requirements.
